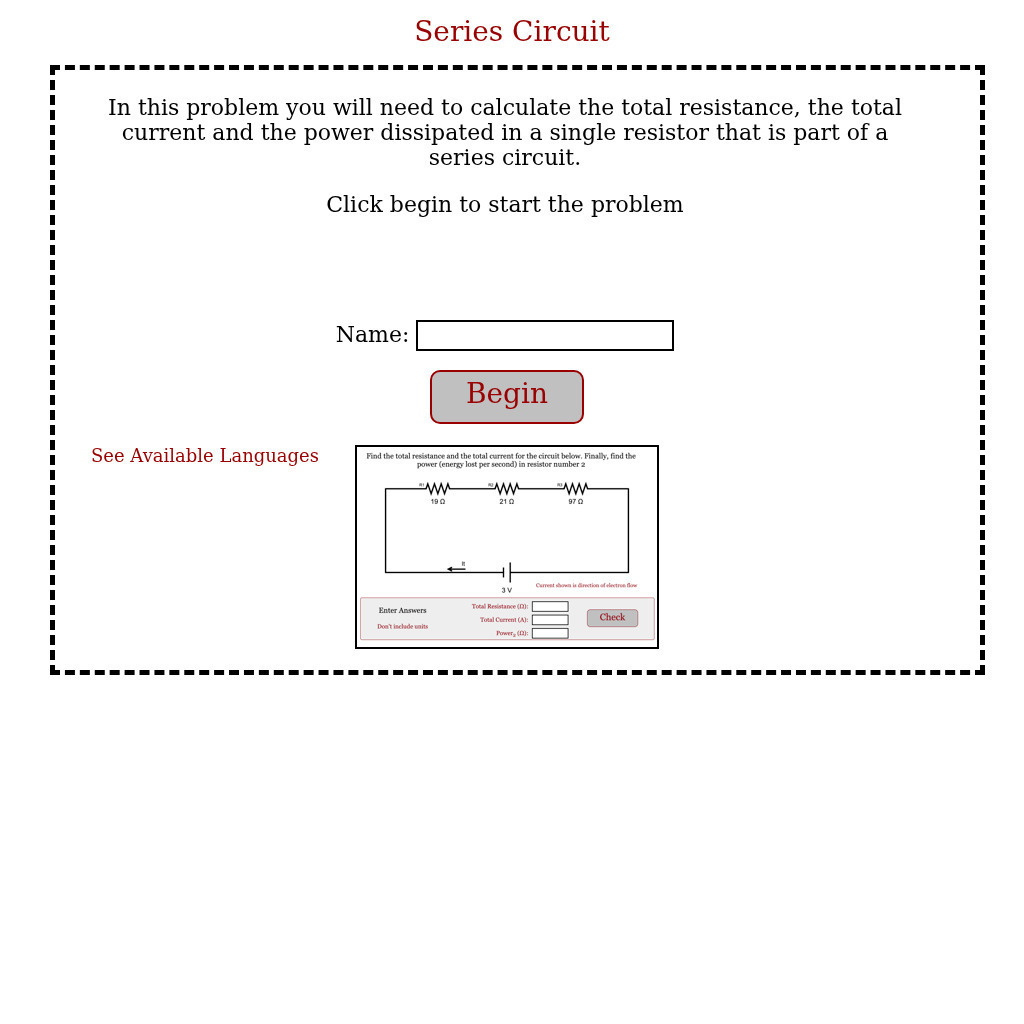

Physics Aviary: Practice Problems: Series Circuit

Determine the amount of power dissipated in a resistor in a complex circuit.

Determine the total energy stored on a group of capacitors in a combination circuit.

Find the terminal voltage of a battery with significant internal resistance. Determine the power of one of the external components for the circuit.

Determine the amount of energy stored on a capacitor in a series circuit.

Determine the total energy stored on a group of capacitors in a combination circuit.

Determine the voltage of the battery based on the colors of the resistors and the current in the series circuit.

Determine the amount of current that is present in a parallel circuit.

Determine the amount of power dissipated in a resistor in a complex circuit.

Determine the internal resistance of a battery based on the electrochemical potential and the current that comes out of the battery when it is hooked to a series of resistors connected in parallel.

Determine the rms current in an LC circuit powered by an AC power supply. Then find the frequency that will cause a spike in current in the circuit.
